FFmpeg h264 to WebM VP9 encoding comparison part 3

In this part 3 see FFmpeg comparison for encoding speed, fps, size and bitrate from an h264 MP4 video file to VP9 WebM with both -deadline realtime and -deadline good with -crf values 15-30 and -cpu-used 0-5.

Part 1 was h264 -deadline good.

Part 2 was h264 -deadline realtime.

Introduction

To see the encoding options for VP9 WebM with FFmpeg see my post here. The testing is using the constant quality option (crf) and the differences with different deadlines along with the cpu used parameter, these effect speed and the outcome quality.

The server

The server used for testing had dual Intel Xeon E5-2687W v4 CPU’s set @ 3.50GHz, meaning 24 cores and 48 threads in total. 251 GB of usable ram and NVMe drives. Thanks to exception0x876 at wishosting for the opportunity to use this.

The operating system was Ubuntu 18.04 and the FFMpeg version was 3.4.8-0ubuntu0.2.

The input

The input media is from jell.yfish.us with the H.264 testing file here. At 4k resolution (3840×2160) 29.97 fps, 30 seconds long, 250Mbps bitrate and file size of 895MB. This file comes in MKV format but was copied (-c copy) to MP4 for the testing.

The commands

The basis of the testing commands for this part is a combination of the two different -deadline values, obviously the -cpu-used and -crf values changed throughout. -row-mt 1 and -threads 48 stayed consistent through the whole testing process.

ffmpeg -i h264.mp4 -c:v libvpx-vp9 -row-mt 1 -threads 48 -cpu-used X -deadline X -crf X -b:v 0 outputXYZ.webm



ffmpeg vp9 webm size h264 deadline good realtime chart
ffmpeg vp9 webm size KB h264 deadline good realtime chart

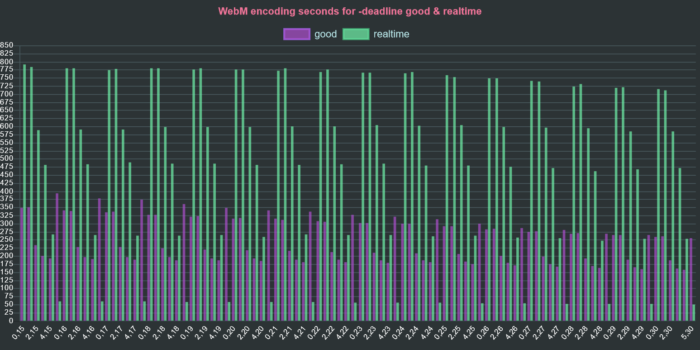

ffmpeg vp9 webm seconds h264 deadline good realtime chart
ffmpeg vp9 webm seconds h264 deadline good realtime chart
ffmpeg vp9 webm bitrate h264 deadline good realtime chart
ffmpeg vp9 webm bitrate kbits/s h264 deadline good realtime chart
ffmpeg vp9 webm FPS h264 deadline good realtime chart
ffmpeg vp9 webm FPS h264 deadline good realtime chart

WebM file size

ffmpeg vp9 webm size ASC h264 deadline good realtime table
size ASC h264
ffmpeg vp9 webm size DESC h264 deadline good realtime table
size DESC h264

WebM bitrate

ffmpeg vp9 webm bitrate ASC h264 deadline good realtime table
bitrate ASC h264
ffmpeg vp9 webm bitrate DESC h264 deadline good realtime table
bitrate DESC h264

Encoding time

ffmpeg vp9 webm seconds ASC h264 deadline good realtime table
seconds ASC h264
ffmpeg vp9 webm seconds DESC h264 deadline good realtime table
seconds DESC h264



ffmpeg vp9 webm h264 deadline good realtime table
